Anti-Abrasive And Corrosion-Resistant High Chrome Cast Iron Long
Life OEM Dredge Pump Parts

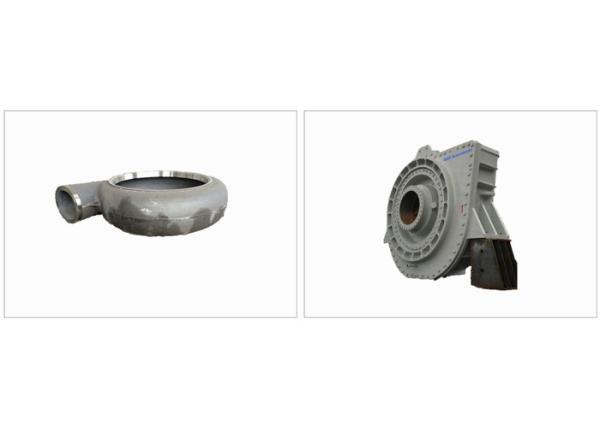

Slurry pump parts
Completely interchangeable with NH, L, M, HH, SP slurry pumps and
G/GH gravel pumps
For unlisted slurry pump parts, OEM service offered. Drawings
needed.
Product Features:
1. Wear parts are constructed with chromium alloy; so pumps have
better stability & longer service life.
2. Unique mechanical seal device can protect the electric motor and
ensure high suction efficiency.
3. Additional agitation impeller is equipped to help break and mix
the sludge.
Materials
High chrome alloy: A05, A07, A49, etc.
Natural rubber: R08, R26, R33, R55, etc.
Other material as per requests, like stainless steel, duplex
stainless steel, Nickle alloy, Alloy 20, etc.
OEM part codes
Here we list some OEM part codes for reference:
Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147,
G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...
A H Series Heavy Duty Slurry Pump Throat Bush code:
6/4 D-A H Slurry Pump code: E4083
6/4 E-A H Slurry Pump code: E4083
8/6 E-A H Slurry Pump code: F6083
8/6 F-A H Slurry Pump code: F6083
10/8 F-A H Slurry Pump code: F8083
10/8 ST-A H Slurry Pump code: G8083
12/10 ST-A H Slurry Pump code: G10083
14/12 ST-A H Slurry Pump code: G12083
G Series Sand Gravel Pump
12/10G-G Sand Gravel Pump Throat Bush code: FG10013
14/12G-G Sand Gravel Pump Throat Bush code: GG1412013
Frame & Bearing Assembly types
Types: B, C, D, E, F, R, X, ST, T, TU, CC, DD, EE, FF, etc.
