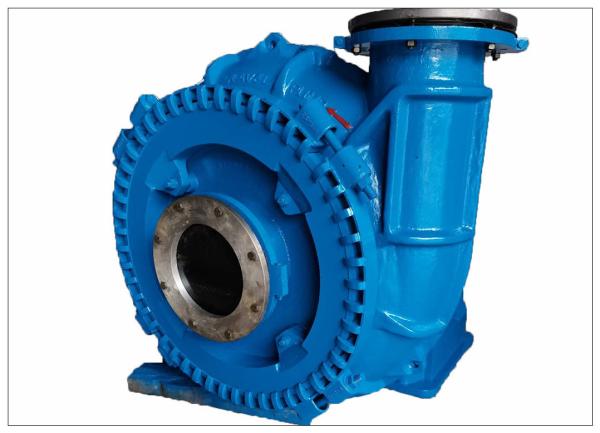

Hard Metal Sand Gravel Pump Boat Use Sand Suction Dredging OEM ODM

Sand Suction Dredging Boat Use Large Capacity Anti-Abrasive Hard Metal OEM Available Sand Gravel Pump

Introduction

1. Gravel Sand pump (dredge pump) is designed as single casing connected by means of clamp
bands and wide wet-passage.

2. The wearing parts are made of ultra chromium abrasion-resistance alloys, long service life
and very low failure rate.

3.The pumps are designed for continuously transferring strong corrosive big-solid -contained

slurry which the common slurry pump cannot transfer. They are widely used in dredging,
sand excavation; mining, explosive-sludge in metal melting, etc..

4. G series gravel pump is often installed on cutter suction dredger or barge.

5. Gravel pump outlet direction can be in any position of 360· This type of pump possesses
the advantages of easy installation and operation, good performance of NPSH and abrasion resistance.

6. The discharge direction of pump can be oriented in any direction of 360°

Type GH are high head pumps.

Clear Water Performance Chart
Model	Allowable Max. Power (kw)	Capacity Q m3/h	Head H (m)	Speed n(r/min)	Max.Eff. (%)	Impeller. Dia. (mm)
6/4D-G	60	36-250	5-52	600-1400	58	378
8/6E-G	120	126-576	6-45	800-1400	60	378
10/8S-G	560	216-936	8-52	500-1000	65	533
10/8F-G	260	216-936	8-52	500-1000	65	533
10/8S-GH	560	180-1440	24-80	500-950	72	711
12/10F-G	260	360-1440	10-60	400-850	65	667
12/10G-G	600	360-1440	10-60	400-850	65	667
12/10G-GH	600	288-2808	16-80	350-700	73	950
14/12G-G	600	576-3024	8-70	300-700	68	864
16/14G-G	600	720-3600	18-44	300-500	70	1016
16/14TU-G	1200	324-3600	26-70	300-500	72	1270
18/16G-G	600	720-4320	12-48	250-500	72	1067
18/16TU-G	1200	720-4320	12-48	250-500	72	1067

Metal Pumps Material
No	Part	Material	No	Part	Material
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft	4140 High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate Liner Insert	Rubber	6	Frame Plate Liner	27% Chrome White Iron
7	Cover Plate Liner	Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller	27% Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller Ring	Natural Rubber	13	Expeller	27% Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
17	Seals	Rubber	17	Seals	Rubber
